EAB Metal Detectors

EAB Metal Detectors

EAB Metal Detectors are designed to be reliable, resistant to vibration and maintenance free under proper operational conditions. With the metal detector, it is possible to monitor material with a high percentage of metal oxide IE: Basalt, Slag, Magnetite, Magnesium Oxide, etc. The metal detector protects crushers, mills, mixers, and extruder machines. The metal detector will detect all kinds of metals including: Steel, Iron, Copper, Aluminum, Brass and Stainless Steel. These quality metal detectors from EAB come with an upper & lower probe, two side spacers, control box and a splice detector.

Used in operations worldwide to protect equipment and prevent metal objects from contaminating products.

  • Aggregate
  • Sand
  • Recycling
  • Brick
  • Coal
  • Wood
  • Slag
  • Cement

Detection Information

These units are available in dual probe configurations. Compact design allows installation in almost any application. With Over 3000 units in operations worldwide, these units have proven their longevity and reliability.

  • Detects both Ferrous and Non-Ferrous Metals
  • Magnetite from Iron oxide and Ore are ignored
  • Can be Operated in Close Proximity to Frequency Converters
  • Can be Operated Near Magnets (Minimum Distance of 6 Feet)
  • Probes Constructed of High Temperature PVC Plastic for Durability
  • Special Secondary Sensitivity in Area of Metal Splice or Repair Clip
  • Adjustable Primary Sensitivity during Operation
  • Accepts Both 110 VAC and 220 VAC Single Phase Power
  • Splice Detector Standard
  • Sand Bag Marking Device (Option)
  • Three Year Warranty on Parts
EAB Metal Detector
Application Form
Project Details
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Technical Data

Supply Voltage:
110 VAC /220 VAC
Power Input:
15VA
Belt Speed:
80-1170 FPM
Permissible Ambient Temperature:
-13° F - +131° F
Input:
1-Coaxial Cable
Output Metal Signal:
1 Siemens cradle relay w/2 floating changeover contacts switching capacity 220V. 6A resistive load, switchable between normal mode & activated mode.
Housing:
IP 55-65 enclosure protection. Sheet Steel available upon request
Installation:
Wall Mounting
Dual Probe Units Comprised of:

1 control unit, 2 probes, 2 spacers, 32 feet coaxial cable with plug & installations accessories
Installation:
2 Inches clearance between loaded belt & lower probe unless otherwise stated

EAB Metal Detector Support Documents

EAB Metal Detector Overview

Download

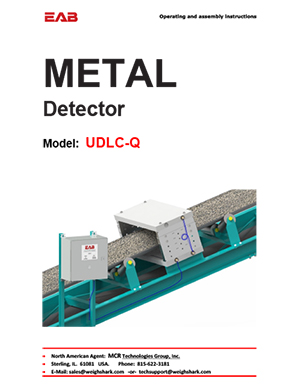

EAB Metal Detector Manual
